Product Details
＋

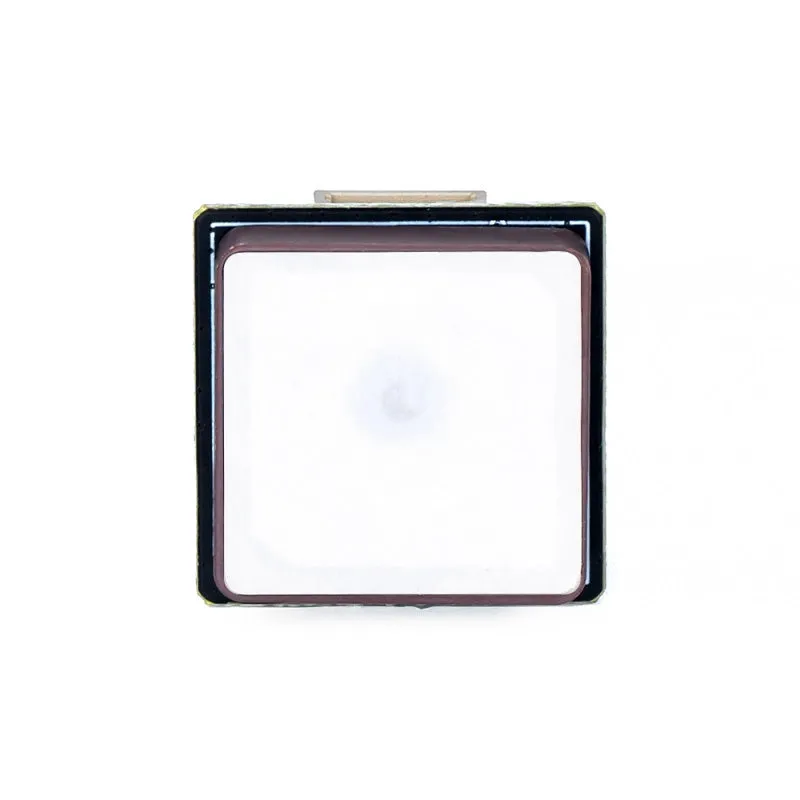

The Axisflying M80Q GPS Module is a high-performance navigation solution designed for FPV freestyle and long-range drone applications. Engineered for precision and reliability, this module features an integrated electronic compass, ensuring enhanced orientation and stability during flight.
Features:
- High Sensitivity: Tracking sensitivity of -167 dBm for reliable performance.
- Fast Start Times: Cold start in 26 seconds; hot start in just 1 second.
- Accurate Positioning: Horizontal accuracy of 2.0 m CEP for precise navigation.
- Versatile Protocols: Supports NMEA-0183 and UBX protocols for integration.
- Durable Design: Operates in extreme temperatures from -40 °C to 85 °C.
- Compact Size: Lightweight design at only 12.0 g for easy installation.
- Memory Retention: 4M FLASH memory retains configurations after power loss.
- Integrated Compass: Internal electronic compass for improved orientation.
Package Includes:
1× Axisflying M80Q GPS Module w/compass for FPV freestyle and LongRange
Specification:-
| Model |
M80Q GPS |
|---|---|
| Tracking Sensitivity (dBm) |
-167 |
| Baud Rate (bps) |
4800-921600 (default: 38400) |
| Output Level |
3.3V TTL |
| Output Protocol |
NMEA-0183 Protocol / UBX Protocol |
| Update Frequency(Hz) |
0.25Hz – 18Hz (default: 1Hz) |
| Flash Memory (MB): |
4 |
| Speed Limit |
<515 m/s |
| Power Consumption (mA) |
Normal: 50mA/5.0V |
| Operating Voltage (VDC) |
3.6V-5.5V (typical: 5.00V) |
| Dimensions |
20mm x 20mm x 6mm |
| Weight (g): |
12.0 |
| Connector |
1.00mm 6-pin |
| Compass |
Integrated electronic compass (IST8310) |
| Operating Temperature (°C) |
-40 °C to 85 °C |
| Shipping Weight | 0.025 kg |
| Shipping Dimensions | 7 × 5 × 2 cm |
